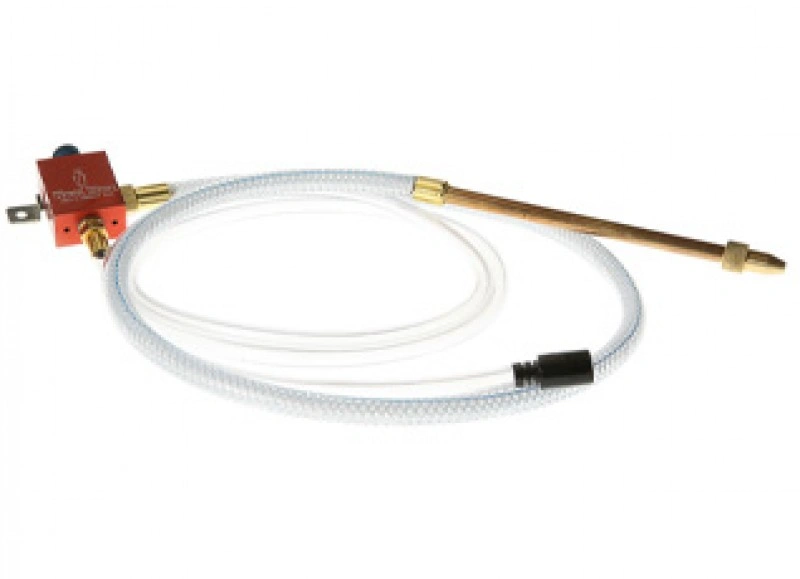

General Purpose Without Tank

General Purpose Without Tank

Our PortaMist units are the most flexible system to be used with your own tank or sump.

These systems provide the user the ability to move the unit quickly and easily, therefore, creating less downtime for the operator.  Air supply required.

The PortaMist units are known for the following features:

  • Single Air/Coolant Control Valve
  • Adjustable Spray Nozzle
  • Heavy Duty Magnetic Base
  • 12” or 18” Flexible LOC-LINE Nozzle Positioner
  • 4 FT. Coolant hose with Anti Syphon Check Valve
  • 4 FT. Air Hose with Male Pipe Thread Fitting
  • 1 Yr. Warranty and replacement parts available



SEE MODEL NUMBERS AVAILABLE

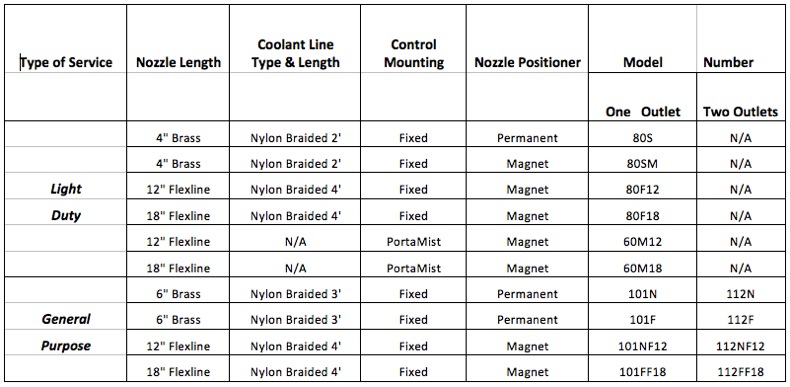

MODELS AVAILABLE
START UP GUIDE
Number Description Size or type
10B1 Valve block orange 3/4 x 1 1/4 x 1 1/2
10B2 Valve block orange 1 1/2 x 1 1/4 x 2 1/4
10VS Valve Stem 10/32 Threads
10VO Valve stem "O" ring only 70 Nitrile
10SN Screw Nozzle 5/16 x 32 Threads
10SO Screw nozzle "O" ring only 70 Nitrile
10CS Coolant Seal Black rubber seal cone shape
MCL-3 3' Nylon coolant line 13/32 x 3/16
MBL-3 3' Metal coolant line 13/32 x 3/16
MCLF12 3' Nylon w/12" flex and mag base assembly
MCLF18 3' Nylon w/18" flex and mag base assembly
MBLF12 3' Metal w/12" flex and mag base assembly
MBLF18 3' Metal w/18" flex and mag base assembly
Blue Magnet Magnetic Holder L 2" x w 1" x H 1"
10p-6 6" brass nozzle end 5/16 x .065 Threads
10 BF Block Fitting 7/16 x 20 Thread
innerlining 1/16 polyethylene innerlining .059 x .089 innerlining 1/16
81K-SB Siphon bushing 3/16 square commercial brass rod.
8B1-MB Mounting bracket for 8B1 block C1010 strips .062 x 1/2 coil
Stock No Picture Description Length
MCL-3 3 ft coolant line-nylon braid

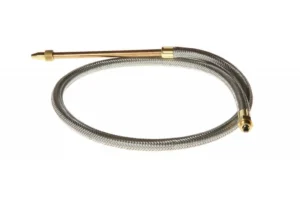

MBL-3 3 ft coolant line-metal braid
MCL Longer lines- 5-12 ft
MCL Longer lines- 13-20ft
MBL Longer lines- 5-12 ft
MBL Longer lines- 13-20 ft
10CS Coolant line rubber seal
10SN Screw nozzle including "O" ring
10SO Screw nozzle "O" ring only
10VS Valve stem including "O" ring
10VO Valve stem "O" ring only
10SL-4 4 ft. syphoning line assembly
10BC Syphoning line ball check only
10B1 Vale block-orange- 3/4 x 1 1/4 x 1 1/2
10B2 Valve block-orange-1 1/2 x 1 1/4 x 2 1/4
8B1-MB Mounting Bracket
